In a computer the power supply is important and you should get one that’s stable and runs within expected tolerances, if it doesn’t you can run into stability issues. Today for review I’ve got the PSUL775 from Diablotek which is a 775Watt power supply. This PSU isn’t modular but it has plenty of connections that should work for most systems. In my time with it I’ve had no problems, it’s quiet and it’s provided more than enough power for my needs. Read on…
Tech Specs,Features or the Basic Info
UL SERIES PSUL775 775W ATX POWER SUPPLY
Features:
775W Power Supply: With a maximum power of 775W, it delivers more than enough power for mainstream level computer systems with high quality performance.
ATX12V V2.31 Compatible: Compatible with the ATX12V V2.31 standard, the UL series 775W PSU provides maximum power stability to drive the latest Intel and AMD processors.

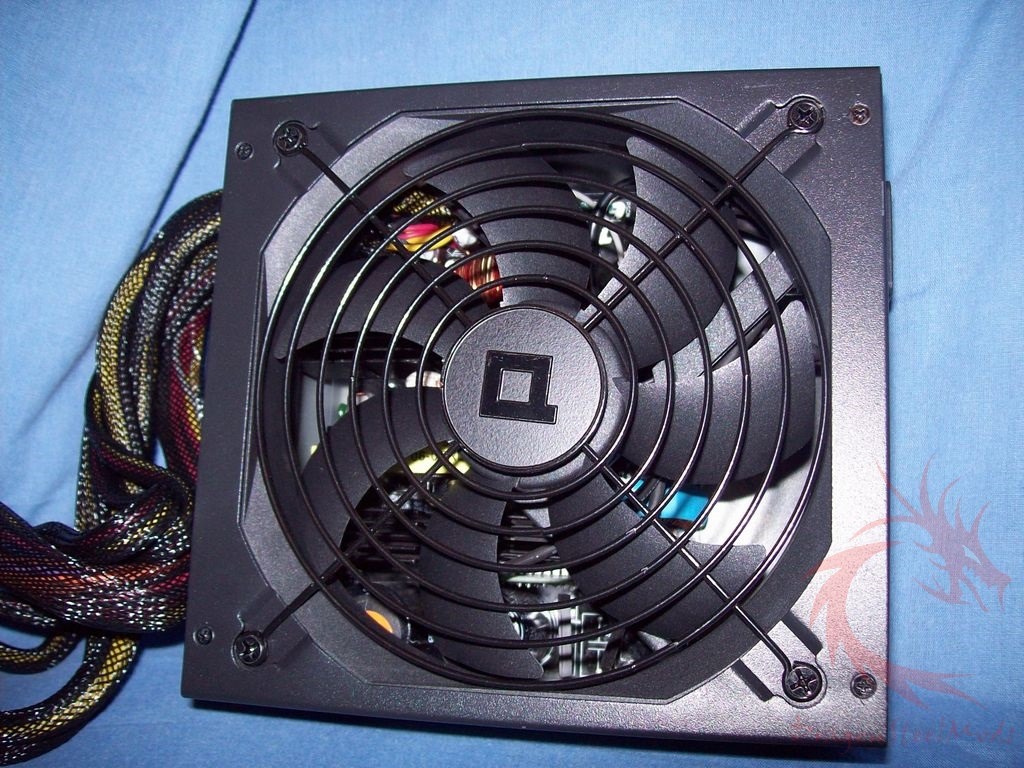

Auto Thermal Control Fan: Built-in auto thermal controlled, the silent cooling 140MM ball bearing fan maximally reduce noise and keep your PC in safety guaranteed.
Ultra Silent: Specially designed, the single 140mm fan is purpose-engineered to guarantee cool, efficient performance and most importantly, low noise.
Dampener Included: With the inclusion of the dampener, it lowers the PSU noise and vibration.
Protection: Over current, over voltage, under voltage, and short circuit protected.
High Quality Components: The built-in solid high quality components strengthen the protection of short circuit, over-voltage, and over current.
High Expansion: The Diablotek PSUL775 has high expansible connectors of 4 x 6+2 Pin PCI-E,6 x SATA, and 6 x MOLEX.
High Efficiency: High efficiency up to 80% to save your electrical bill and prolong your pc life by reducing heat in your system.
High Reliable Capacitor: Highly reliable 105°C capacitor provides performance and reliability.
Advanced Double Forward Circuit: Double Forward circuit offers low power loss and high efficiency and reliability.
Full Sleeve Cabling: Full sleeve cabling for easy organization, optimizing air flow, and improving cooling in the case.
Complete SMT Technology: Designed significantly for providing improved shock and vibration resistance, as well as reduces propagation delays and noise.
FCC: Approved by the Federal Communications Commission for product safety.
CE: Approved by Conformité Européenne for product safety and environmental protection.
RoHS Compliant: Approved by the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment.
UL Certified: Certified by the Underwriters Laboratories.
3 Years Warranty: Diablotek provides all their power supply unit series with full 3 years warranty service.
Specs:
Model No.: PSUL775
UPC: 843636004246
Series: UL Series
Type: ATX12V V2.31
Maximum Power: 775W
Fans: 1 X 140mm fan
+12V Rail: 1
Efficiency: up to 79%
Over Voltage Protection: Yes
Overload Protection: Yes
Input Voltage: 10A@115 / 6A@230 V
Input Frequency Range: 50/60 Hz
Output:
+3.3V@24A
+5V@30A
+12V@60A
-12V@0.5A
+5VSB@2.5A
Connectors:
1 x Main connector (20+4Pin)
1 x 4+4-Pin CPU +12V connector
1 x 4-Pin CPU +12V connector
6 x 4-Pin Molex Connector
6 x SATA
4 x 6+2-Pin PCI-E
1 x Floppy
Approvals: UL. FCC. CE. RoHs Compliant
Dimension: 6.3″ x 5.9″ x 3.4″
Weight: 4.6lbs
Price $75.99 (from NewEgg at time of review)
