Direct Die Cooling

Ok, so I lost my hard drive last year and lost a whole lot of pictures….

I did some experimenting with Direct Die cooling last year, I fabricated my own ‘water blocks’ out of solid plexi and cooled an Athon XP CPU directly with no heatsink in between, hence the name direct die cooling.. the liquid was flowing directly onto the die of the CPU Core, no copper bases no nothing…

I used 3m HFE7100 fluid for the experiement that I intend to renew shortly.. but here are the pics that I manged to find that where not lost…

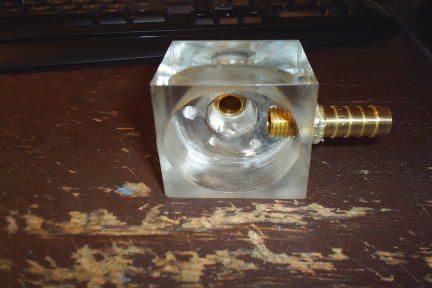

The first and second are of the block before and after fabrication…

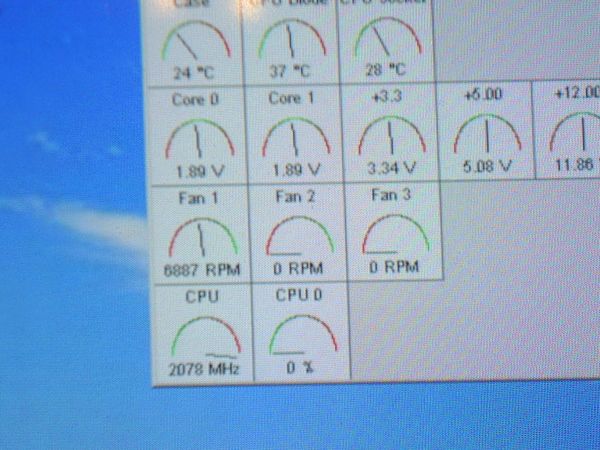

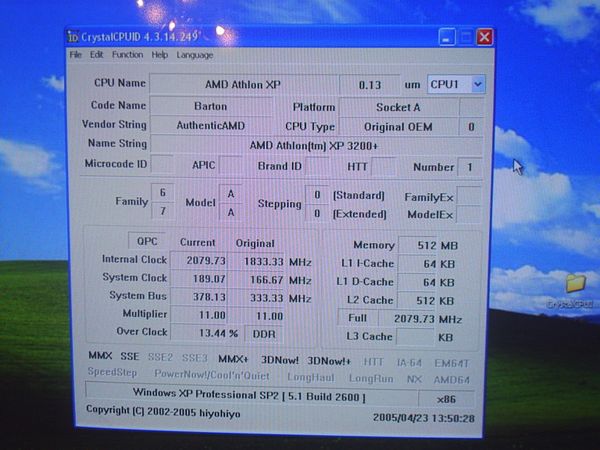

These two pics are of CPUz displaying the Overclock and the Ambient temperature..



The following pictures are just assorted shots of the process..
